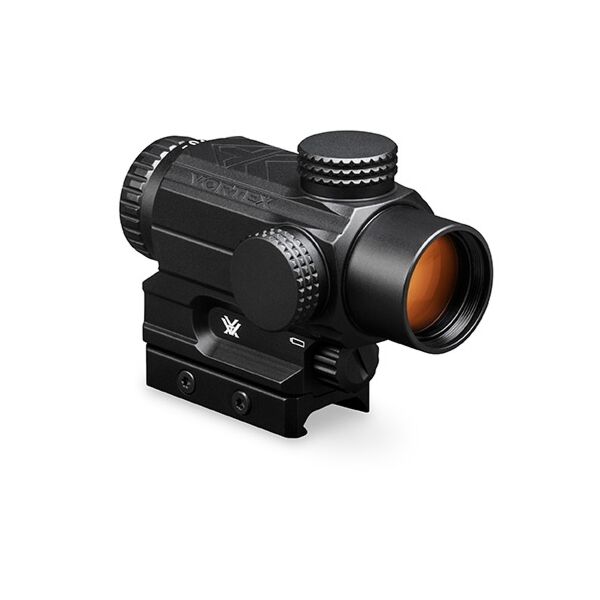

Designed specifically for the AR platform, the 1x Spitfire™ combines an impressive array of high-performance features into a rugged, ultra-compact package. When fast target acquisition in close- to medium-range shooting applications is a priority, the Spitfire excels. Laced with advanced features, the sophisticated prism-based design allows for a more compact optical system without sacrificing optical quality. The DRT (Dual Ring Tactical) reticle is etched directly on the prism to assure consistent point-of-aim at all times with selectable red/green illumination of five intensity levels to match specific conditions. Prism Scopes are not compatible with the VMX-3T Magnifier.
OPTICAL FEATURES |
|
Fully Multi-Coated | Multiple anti-reflective coatings on all air-to-glass surfaces increase light transmission. |
Prism-Based Design | Delivers sharp optics and allows for unique reticle designs that are visible with or without illumination. |
Parallax Free | All red dot and holographic sights will exhibit some small amount of parallax. Matching current industry practice, this small amount would be considered “parallax free” and will make a negligible difference in the Spitfire 1x’s performance. |
CONSTRUCTION FEATURES |
|
Single-Piece Chassis | Compact and lightweight. |
Waterproof | O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments. |
Fogproof | Nitrogen gas purging delivers fogproof, waterproof performance. |
Shockproof | Rugged construction withstands recoil and impact. |
Hard Anodized Finish | Highly durable low-glare matte finish. |
Operating Temperature | Rated from -22 degrees to +122 degrees Fahrenheit. |
CONVENIENCE FEATURES |
|
Variable Mount Heights | Comes mounted at a lower 1/3 co-witness height of 40.4 mm from the optic center to base surface. Remove the mount riser if a lower 30 mm mounted height is desired. |
Adjustable Brightness | Provides five levels of brightness intensity with red and green illumination settings. |
Red/Green Reticle Option | Allows shooters a choice of dot color. |
Battery Life | Typical battery life is 250 hours at maximum brightness and 3,000 hours at minimum brightness setting. |
Magnification | 1 x |
Eye Relief | 3.7 inches |
Field of View | 75 feet/100 yards |
Adjustment Graduation | 1 MOA |
Max Elevation Adjustment | 120 MOA |
Max Windage Adjustment | 120 MOA |
Parallax Setting | Parallax Free |
Length | 4 inches |
Weight | 11.2* |
VIP stands for a Very Important Promise to you, our customer. We will repair or replace your Vortex® product in the event it becomes damaged or defective—at no charge to you. If we cannot repair your product, we will replace it with a product in perfect working order of equal or better physical condition.
You see, it doesn't matter how it happened, whose fault it was or where you purchased it. If you ever have a problem, no matter the cause, we promise to take care of you. You can count on the VIP Warranty for all Vortex Optics riflescopes, prism scopes, red dots, rangefinders, binoculars, spotting scopes, tripods and monoculars.
The VIP Warranty does not cover loss, theft, deliberate damage or cosmetic damage that does not hinder the performance of the product.
Brand | Vortex |
---|
