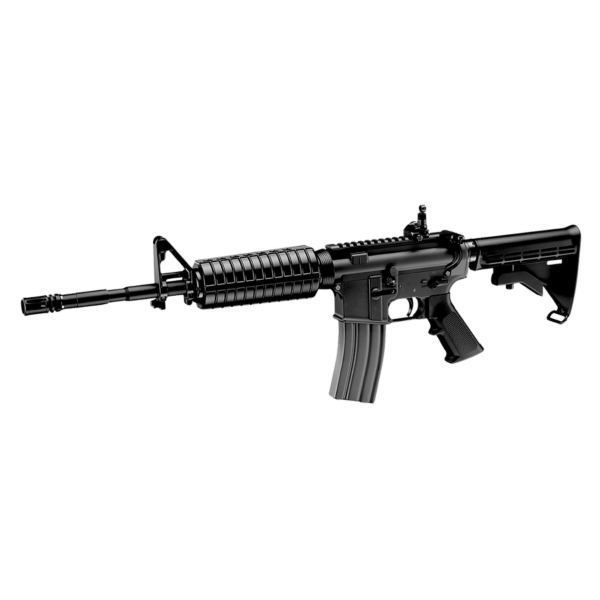

Tokyo Marui EVOLT M4A1 Carbine AEG Rifle

Tokyo Marui EVOLT M4A1 Carbine AEG – Black

The Next Milestone. Precision Redefined.

In 1991, Tokyo Marui changed the airsoft landscape forever by introducing the world’s first electric airsoft gun (the FA-MAS F1). For decades, the standard AEG design remained fundamentally the same.

Now, the future of electric airsoft is officially here.

The Tokyo Marui EVOLT M4A1 Carbine marks a massive technological leap forward. This is not just another M4 clone; it is a ground-up reinvention of the modern electric rifle. By fusing pristine 1:1 real-steel dimensions with an incredibly sophisticated split gearbox design and cutting-edge electronic monitoring, the EVOLT series delivers absolute performance, extreme durability, and unmatched realism.

Why the EVOLT System is a True Game-Changer

1. Two-Piece Split Gearbox (Realistic Takedown)

For the first time in an electric Marui platform, you can experience a realistic field strip. The EVOLT features a highly sophisticated split gearbox design.

• The cylinder assembly is housed in the upper receiver.
• The gears and electrical system sit in the lower receiver. Pop out the takedown pins, and you can crack the rifle open like a genuine firearm—allowing for seamless maintenance, easy cleaning, and safe transport without messing up your internals.

2. Advanced M-SYSTEM Type II (V7.0 Bluetooth Chip)

Adapted from Marui’s next-gen MP5 platform and optimized specifically for the M4, the internal M-SYSTEM Type II is the smartest ECU on the market. Powered by an intelligent Microcontroller Unit (MCU), the system utilizes 6 individual sensors to monitor:

• Perfect gear timing and sector-gear position.
• Battery voltage and amperage levels.
• Immediate safety cut-off if any electrical anomaly or mechanical jam is detected.

3. Shockless "Precision First" Operation

Unlike TM's Recoil Shock series, the EVOLT is designed as a shockless model. By eliminating recoil vibrations, Tokyo Marui has prioritized whisper-quiet operation, high battery efficiency, and absolute, unmatched accuracy. When paired with the custom stabilizer nozzle and high-precision hop-up chamber, your BBs trace a flat, laser-accurate path shot after shot.

4. 1:1 True-to-Life Externals

No cheap oversized dimensions here. Tokyo Marui measured an actual non-functional real M4A1 to construct every single coordinate of the EVOLT. The receiver is finished in a rugged, abrasion-resistant Cerakote coating, and the slim pistol grip is engineered from a reinforced resin to match the exact ergonomics of its real-steel counterpart.

5. Flawless Feeding & Shutter System

Say goodbye to double-feeding or mid-cap jam issues. The EVOLT uses an inner elevation system that applies upward pressure to the magazine inside the well. Combined with the "One-by-One Loading System", a tiny mechanical shutter closes after each BB is chambered, completely eliminating empty double-loads.

Technical Specifications

• Platform: Electric Gun EVOLT AEG (Shockless)
• Length (14.5" config): 777mm/858mm (Retracted/Extended)
• Length (11.5" config): 660mm/742mm (Retracted/Extended)
• Weight: 2,700g (Extremely Balanced & Realistic)
• Electronics: Advanced M-SYSTEM Type II (MCU-Driven)
• Motor: EG-1000 BR (Bearing Reversed High-Torque Motor)
• Barrel Thread: 14mm CCW (Reverse Thread)
• Magazine Capacity: 81-Round Steel-Pressed Magazine
• Rate of Fire: 17 Rounds Per Second
• Velocity: 305 FPS (approx. 93m/s on 0.20g BBs)

What's in the Box:

• Tokyo Marui EVOLT M4A1 AEG
• 1x 81-Round EVOLT Steel Magazine
• 11.5-inch outer barrel extension
• Receiver Cover & Protective Battery Cap
• Hex Wrench, O-Rings, & Hop Adjustment Tool
• User Manual

BZ Tech Team Setup Guide: The EVOLT Power Solution

The Proprietary Power Warning: To power the highly advanced M-SYSTEM Type II computer chip safely, the EVOLT M4A1 requires Tokyo Marui's proprietary MS Stick-Type Li-Po battery and its dedicated charger. Standard hobby-grade Li-Pos will not fit the unique connector interface.

The BZ Advantage: To make sure you can play right out of the box with zero headache, we are selling these rifles exclusively as a complete bundle pack. The price includes the rifle, the proprietary MS Li-Po battery, and the dedicated balance charger. No hunt for obscure accessories, just plug in, charge, and dominate.

UKARA & Two-Tone Notice: A valid UKARA number or registered skirmisher defence is required to purchase this realistic imitation firearm in its original matte black finish. If you do not have a registered defence, please choose our professional Two-Tone Service at checkout. We will paint over 51% of the rifle in a bright, legally compliant colour (please allow up to 10 additional days for processing).

As the EVOLT M4A1 requires a proprietary battery and charger, we are currently only selling these rifles as a bundle with these items included so that no EVOLT owner finds themselves without a compatible battery & charger.
