Mechlabs Nexxus Drop-In Mechanical HPA Engine - Teal

Mechlabs Nexxus Drop-In Mechanical HPA Engine - Teal

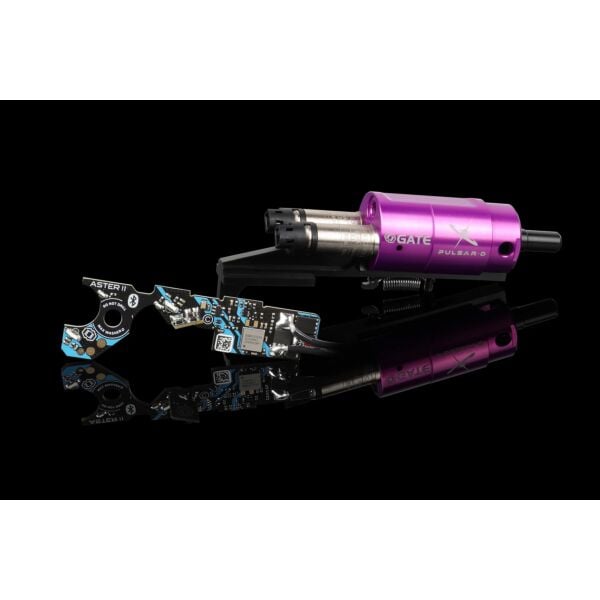

Gate PULSAR D kit for V3 - PULSAR D + ASTER II Bluetooth for V3 + Tappet Plate V3

£499.99
In Stock
SKU
HPA-PD-V3

Free 2-3 Day delivery on Mainland UK orders over £100
Order before 3pm for same-day order processing
100% Secure Shopping
Why buy from BZ?



PULSAR D HPA Engine (dual solenoid, closed-bolt) with ASTER II Bluetooth® for V3 EXPERT– thanks to optical sensors combined with HPA technology, you get an absurd trigger response. Get insane muzzle velocities ranging from 250-650 FPS & ROF from 1-40 RPS for CQB, assault, and sniper replicas. Closed-bolt and the innovative feed system guarantee you a straight and repeatable BB trajectory even in full AUTO – every time. Engine calibration has never been easier – PULSAR D & ASTER II Bluetooth® is introducing innovative cycle synchronization automation. The most advanced and user-friendly GCS app lets you access a multitude of settings and configurations like binary trigger, trigger sensitivity, ROF – live via Bluetooth®. You can even use a remote trigger on your smartwatch. Install the world's smallest and most advanced dual solenoid valve HPA engine in replicas where previously not possible due to size constraints. Choose one of the five nozzles included or use a regular AEG one. Take your HPA replica into the future!

No soldering required! You get specially prepared the ASTER II Bluetooth® with pre-soldered cables to power your HPA engine. The kit also includes the PULSAR D engine, a dedicated Tappet Plate compatible with V3 replicas, and additional cables. Dedicated tappet plate for V3 provides innovative cycle synchronization automation known from the V2 platform. This guarantees you an incredibly easy engine calibration.

This is the first set of its kind in the world for V3 platform owners. Elevate your game to a whole new level with this kit!

Accuracy. Versatility. Compatibility.

PULSAR D is unrivaled thanks to the following combination:

  • Simple design
  • Innovative automatic synchronization of the nozzle movement cycle enables easier calibration – no need to fire thousands of rounds to achieve good FPS results and stable BB trajectories
  • Due to its innovative BB feed system and closed-bolt mode, it is definitely less sensitive to replica and assembly quality
  • Razor-sharp accuracy of the system – no unstable hop-up system symptom like in other HPA systems
  • Seamless integration & compatibility with the most advanced optical ETU/FCU ASTER II Bluetooth® for a synergy effect
  • High tolerances eliminating the mid-cap syndrome
  • Compatibility with any AEG nozzles
  • Zero nozzle wobble resulting in stable FPS when paired with GATE AEG nozzles, which translates into stable FPS and no mid-cap syndrome
  • No FPS drops on AUTO relative to SEMI mode at high RPS – up to 40 RPS with no FPS drops

PULSAR D FEATURES

SIMPLE - Easy maintenance, thanks to a well thought-out design

VALUE FOR MONEY - State-of-the-art technology at the best price

COMPACT - Smallest dual solenoid valve closed-bolt HPA engine with innovative cycle synchronization

Bluetooth® ETU/FCU CONTROLLED - ASTER II Bluetooth® V3 gearbox drop-in ETU FCU mosfet AEG HPA – the best Bluetooth optical unit in an HPA replica

  • Very high resolution trigger ‎sensor – up to 50 points of sensitivity in the first millimeter
  • Bluetooth® 5.2 – connectivity to other elements of the GATE ecosystem, e.g. STATUS, smartwatch
  • For the first time in HPA replicas configurable fire modes such as BINARY TRIGGER, BURST, etc.
  • Convenient GCS app for iOS, Android, macOS, Windows, watchOS, Wear OS
  • Constant access to software updates

AEG COMPATIBILITY - Compatible with AEG nozzles – 5 nozzle lengths included for MP5, M4/M16:

  • 20.30mm
  • 21.00mm
  • 21.15mm
  • 21.25mm
  • 21.40mm

NO MID-CAP SYNDROME - Eliminated mid-cap syndrome thanks to high dimensional tolerance

ACCURACY - High accuracy due to the innovative BB feed system for HPA engines

STABILITY - FPS stability in full AUTO mode

  • PULSAR D – DUAL HPA SOLENOID ENGINE

    The design and production of the device is based on harmonized standards.

    Solenoid Voltage Range

    5-8.4 V

    Operating Pressure

    60-140 PSI – high pressure only

    Gas Consumption

    For 90 PSI and a 48 ci/0.8 l 300 bar/4500 PSI bottle – 0.7 PSI per shot

    Dimensions with innovative cycle synchronization automation (Length x Diameter x Height)

    102 mm x 25.4 mm x 38.5 mm

    Dimensions (Length x Diameter x Height)

    100 mm x 25.4 mm x 32 mm

    Finished Product Weight

    90 g

    Operating Temperature Range

    min. -15° C, max. +50° C

    Relative Humidity

    ≤ 80%

    Regulated ROF

    1 to 40 RPS (BB feed correctness depends on magazine)

    Velocity

    250 – 650 FPS

    Operation Mode

    Closed-Bolt / Open-Bolt

    Pressure Range

    60 do 140 PSI

  • ASTER II Bluetooth® for V3

    Supply Voltage Range [AEG application]

    3.75 - 12.9 V

    Supply Voltage Range [HPA application]

    5 - 8.6 V

    Rated Current

    30 A

    Current Consumption

    20 mA

    Low Power Mode

    130 µA

    Dimensions (Length x Width x Height)

    73.5 mm x 24 mm x 12.5 mm

    Finished Product Weight

    26 g

    Operating Temperature Range

    min. -15°C max. + 50°C

    Relative Humidity

    ≤ 80%

More Information
Brand GATE
