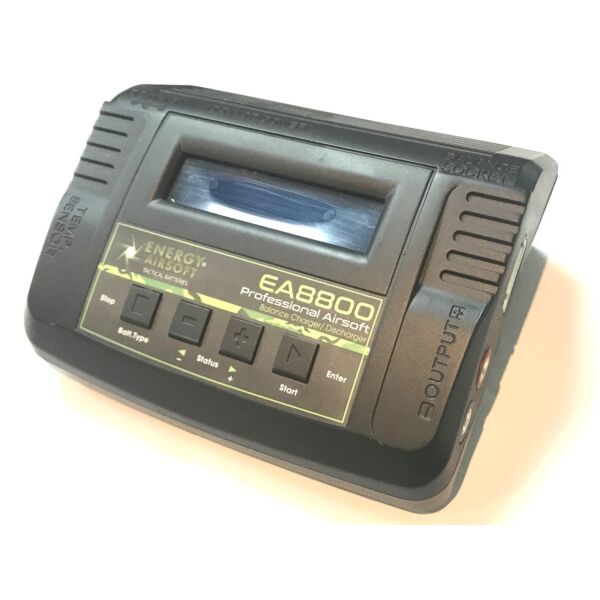

Energy Airsoft EA8800 Airsoft Intelligent Balance Charger / Discharger

This is a high performance, micro-processor controlled, fast charger / discharger which has a built-in Lithium balancer. It’s perfect for charging Li-Ion, Li-Po, Li-Fe, Ni-MH, Ni-Cd and Lead Acid batteries from either a 10~18.0v DC power source or a 110 - 240v AC supply. The E6680 has a large, clear backlit LCD for easy set-up and use and is very compact.

This charger is build with a strong high quality light weight plactic case with intenal heatsinks for efficient cooling!

Optimized Operating Software

e6680 features the so-called AUTO function that sets the feeding current during the process of charging or discharging. Especially for Lithium batteries, it can prevent the overcharging which may lead to an explosion due the the user's fault. It can disconnect the circuit automatically and alarm once detecting any malfunction. All the programs of this product are controlled through two way linkage and communication, to acheive the maximum safety and minimize the trouble. All the settings can be configured by users.

Internal Independant Lithium battery Balancer
e6680 employs and individual-cell-voltage-balancer. It Isn't necessary to connect an external balancer for balance charging.

Balancing individual cells battery discharging
During the process of discharging, e6680 can monitor and balance each cell of the battery individually. Error Message will be indicated and the process will be ended automatcially if the voltage of any single cell is abnormal.

Adaptable to various types of Lithium battery
e6680 is adaptable to various types of Lithium batteries, such as Li-Ion, LiPo and the new LiFe series of batteries.

Fast and sotrage mode of lithium battery
Purposes to charge Lithium battery varies - 'fast' charge reduces the duration of charging, while 'store' state can control the final voltage of your battery, so as to store for a long time and protect useful time of the battery

Maximum safety
Delta-peak sensitivity: the automatic charge termination program based on the prnciple of the Delta-peak voltage detection. When the battery's voltage exceeds the threshold, the process will be terminated automatically.

Automatic Charging current time limit
You can set up the upper limit of the charging current when charging your NiCd or NiMH battery; it is useful for charging the NimH battery of low impedance and capacity in the auto charging mode.

Capacity Limit
The charging capacity is always calculated as the charging current multiplied by the time. If the charging capacity exceeds te limit, the process will be terminated automatically.

Temperature Threshold*
The battery's internal chemical reaction will cause the temperature of the battery to rise. If the temperature limit s reached, the process will be terminated.
*This function is only available by connecting a temperature probe, not included

Processing time limiter
You can set the maximum process time to avoid any possible defect

Input power monitoring
To protect a car battery if isued as a DC input power source, it's voltage is constantly monitored. If it drops below the lower limit, the process will be ended automaticlally

Data store/load
The maximum five batteries data can be stored for user's convenience. You can keep the data pertaining to program setting of the battery of continuous charging or discharging.

Cyclic Charging/Dischargin
1 to 5 Cyclic and continuous process of charge>discharge or discharge>charge is operable for batter refreshing and balancing to stimulate the battery's activity

• AC/DC Dual Power
• Microprocessor controlled
• LCD Display
• Temperature controlled cooling fan
• AC Input Input: 100-240 V
• DC Input: 11-18V
• Max. Charge Power 80W
• Max. Discharge Power: 10W
• Charge Current Range: 0.1-6.0A
• Discharge Current Range: 0.1- 2.0A
• Current Drain for balancing LiPo: 300mA/ce
• NiCd/ NiMH Battery cell count: 1-15 Cells
• LiPo/ LiFe/ LiIon cell count: 1-6 cells
• pb battery voltage: 2-20v
• weight: 490g
• Dimensions: 135 x 112 x 60.9mm
